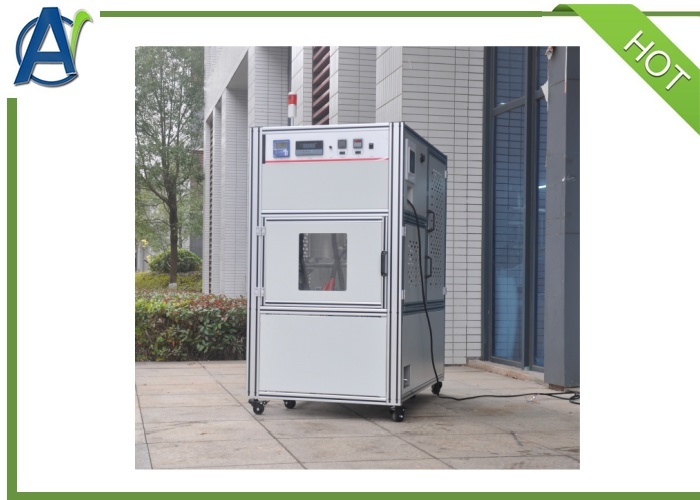

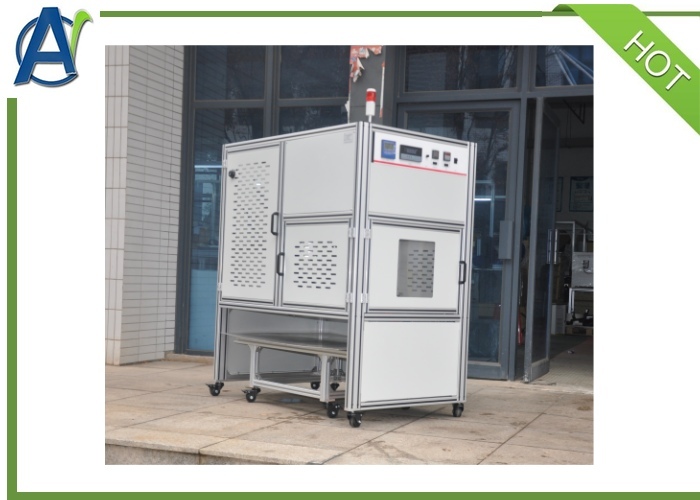

Electric Vehicle Coolant Circulation Test Bench GB 29743.2 Standard Cooling Fluid Cycle Test Equipment

Electric Vehicle Coolant Circulation Test Bench GB 29743.2 Standard Cooling Fluid Cycle Test Equipment
Electric Vehicle Coolant Circulation Test Bench GB 29743.2 Standard Cooling Fluid Cycle Test Equipment Electric Vehicle Coolant Circulation Test Bench GB 29743.2 Standard Cooling Fluid Cycle Test Equipment Electric Vehicle Coolant Circulation Test Bench GB 29743.2 Standard Cooling Fluid Cycle Test Equipment Electric Vehicle Coolant Circulation Test Bench GB 29743.2 Standard Cooling Fluid Cycle Test Equipment Electric Vehicle Coolant Circulation Test Bench GB 29743.2 Standard Cooling Fluid Cycle Test Equipment Electric Vehicle Coolant Circulation Test Bench GB 29743.2 Standard Cooling Fluid Cycle Test Equipment Electric Vehicle Coolant Circulation Test Bench GB 29743.2 Standard Cooling Fluid Cycle Test Equipment Electric Vehicle Coolant Circulation Test Bench GB 29743.2 Standard Cooling Fluid Cycle Test Equipment Electric Vehicle Coolant Circulation Test Bench GB 29743.2 Standard Cooling Fluid Cycle Test Equipment Electric Vehicle Coolant Circulation Test Bench GB 29743.2 Standard Cooling Fluid Cycle Test Equipment Electric Vehicle Coolant Circulation Test Bench GB 29743.2 Standard Cooling Fluid Cycle Test Equipment Electric Vehicle Coolant Circulation Test Bench GB 29743.2 Standard Cooling Fluid Cycle Test Equipment
기본 정보
원래 장소: 중국
브랜드 이름: AI
인증: ISO9001
모델 번호: AIC29743.2
최소 주문 수량: 1세트
가격: USD$25,000~30,000
포장 세부 사항: 합판 케이스
배달 시간: 30일
지불 조건: T/T, 서부 동맹, L/C
공급 능력: 달 당 20개 세트
최고의 가격 지금 연락
언어: 영어 OEM 서비스: 사용 가능
온도 조절: 디지털 PID 온도 컨트롤러 트랜드마크: 고급 장비
보증: 1년 테스트 표준: GB29743.2
가지고 다닐 수 있는: 휴대용이 없습니다 유량 범위: 0~50L/분
흐름 제어 정확도: ±5% 가열방식: 포장된 가열 테이프
테스트 작업 기간: 1064H 온도 조절 범위: 주변 온도 ~ 100°C
온도 조종 정확도: ±2°C 타이밍 모드: 디지털 표시 타이머
강조하다:

Electric Vehicle Coolant Test Bench

,

Cooling Fluid Cycle Test Equipment

,

GB 29743.2 Standard Test Bench

EV Coolant Circulation Test Bench

I. Introduction:

Place the EV coolant into a closed test assembly consisting of a radiator, water pump, power battery cooling plate, liquid storage tank and connecting rubber hoses. Circulate the coolant for 1064 hours at 80°C under a specified flow rate. After the test, evaluate the corrosion protection performance of the EV coolant by measuring the mass change of typical metal test coupons installed in the liquid storage tank and inspecting the inner surface condition of all components in the circulation system.

Application Scope

  1. Manufacturers of engine coolants
  2. Inspection & testing institutions

II. Main Features

  1. This Electric Vehicle Coolant Circulation Test Bench consists of operation & display unit, heating control system, rotating speed control system, pressure control system, flow control system and supporting assemblies.
  2. Condenser: Reduces test pressure to simulate actual vehicle working conditions.
  3. Storage Reservoir: Delivers catalytic effect.
  4. Glass Tube: For visual observation of sample circulation status.
  5. Standard metal test coupons: 7 coupons per set, 3 sets in total.
  6. Wrapped belt heater: Ensures uniform heating.
  7. Special aluminum automotive pump for test circulation loop.
  8. A heat-resistant glass viewing window is fitted on the upper part of the radiator.
  9. A thermometer socket is arranged on the storage reservoir for temperature calibration.
  10. Brass bracket, capable of mounting three sets of test coupons.
  11. Microcomputer temperature controller with digital display, temperature accuracy ±2℃, equipped with PT100 sensor.
  12. Digital timer for recording test duration.
Electric Vehicle Coolant Circulation Test Bench GB 29743.2 Standard Cooling Fluid Cycle Test Equipment 0

III. Specifications:

Applicable Standards
GB 29743.2
Flow Range
0~50L/min
Flow Control Accuracy
±5%
Heating Method
Wrapped Heating Tape
Test Working Duration
1064h
Temperature Control Mode
Digital PID Temperature Controller
Temperature Control Range
Ambient Temperature ~ 100°C
Temperature Control Accuracy
±2°C
Timing Mode
Digital Display Timer
Power Supply
AC220V / 50Hz
Working Pressure
80~103 kPa, displayed by pressure gauge
Measuring Resolution
0.1°C
Total Machine Power
4 KW

FAQ

  1. What's the delivery time?

    About 30days.

  2. What's your payment terms?

    30% paid by T/T in advance,70% paid by by T/T before shipping.

  3. What's your guarantee terms?

    The warranty of all products is 1 year.During this period,we are responsible for all faults caused by us.And we can supply life-long technical support.

  4. Can you supply training?

    We can supply training in our factory and online training for free.If onsite installation and training are required,please pay for tickets,accommodation and salary USD280/Day for every person.
