제한되는 진보된 계기 Co.
질과 서비스에서 전진되기 위하여!
| 원래 장소: | 중국 |
|---|---|
| 브랜드 이름: | AI |
| 인증: | ISO9001 |
| 모델 번호: | AIC-4170 |
| 최소 주문 수량: | 1세트 |
| 가격: | USD$20,000~25,000 |
| 포장 세부 사항: | 합판 케이스 |
| 배달 시간: | 30일 |
| 지불 조건: | T/T, 서부 동맹, L/C |
| 공급 능력: | 달 당 20개 세트 |
| 테스트 표준: | ASTM D4170 | 보증: | 1년 |
|---|---|---|---|
| 트랜드마크: | 고급 장비 | OEM 서비스: | 사용 가능 |
| 언어: | 영어 | 전원공급장치: | AC (220 ± 10%) V, 50Hz |
| 소프트웨어 언어: | 영어 | 최대 전력 소비: | 300W |
| 테스트 베어링의 내경: | 16mm±0.025mm | 테스트 베어링의 외경: | 35.69±0.025mm |
| 오시일레이션 모드: | 모터 구동 | 진동하는 아크: | 12 ° |
| 오시일레이션 주파수: | 30Hz | 베어링 부하: | 2450h |
| 달리기 시간: | 22 시간 | 주파수 제어: | 주파수 변환기 |
| 강조하다: | ASTM D4170 grease fretting wear tester,grease fretting corrosion testing equipment,oil test equipment with ASTM compliance |
||

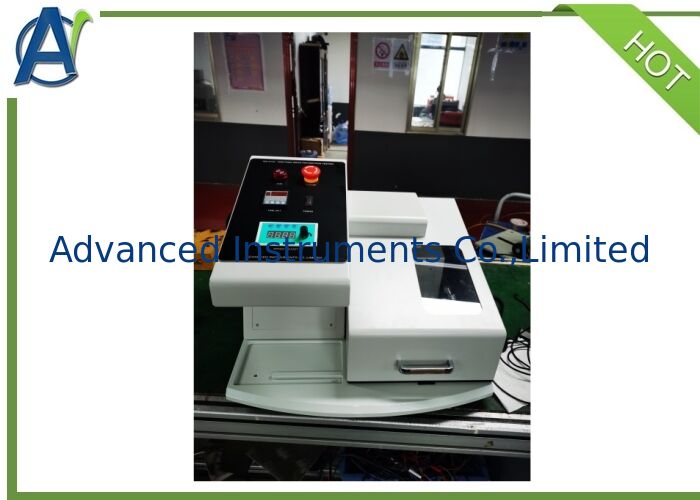

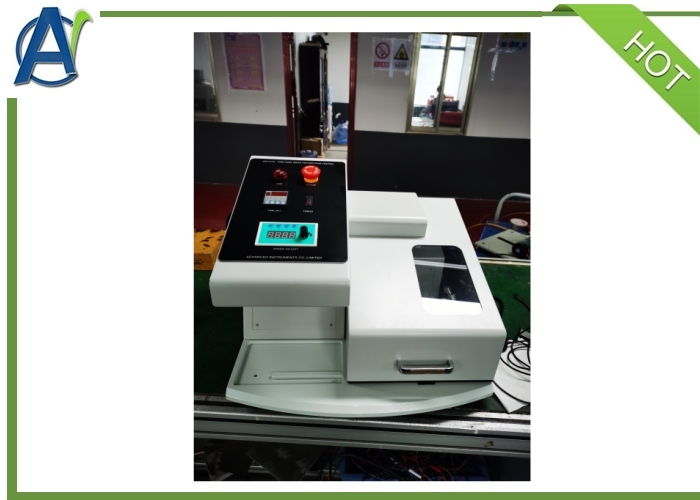

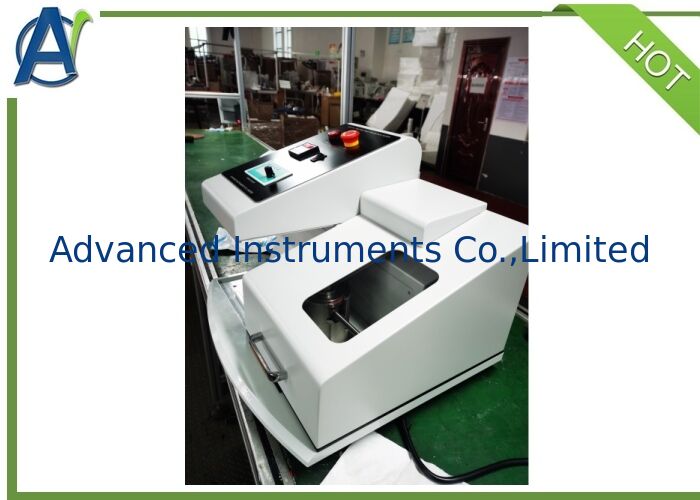

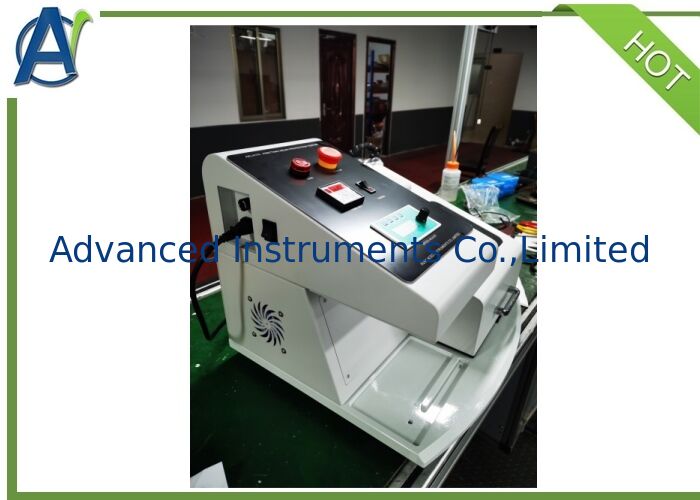

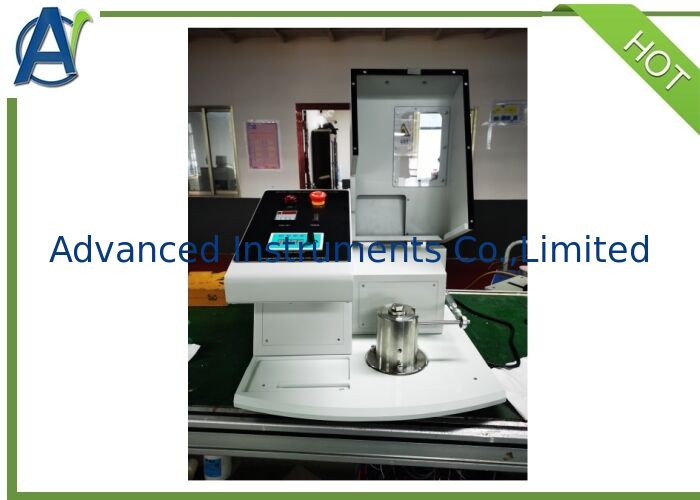

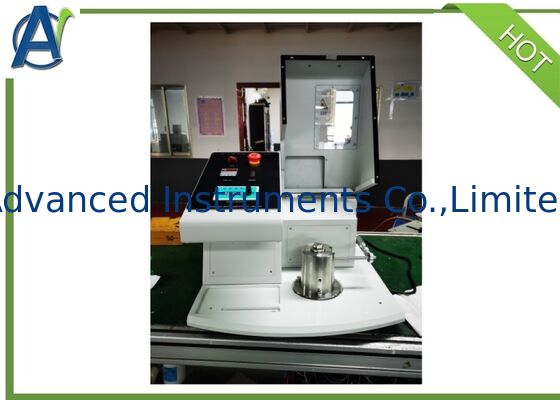

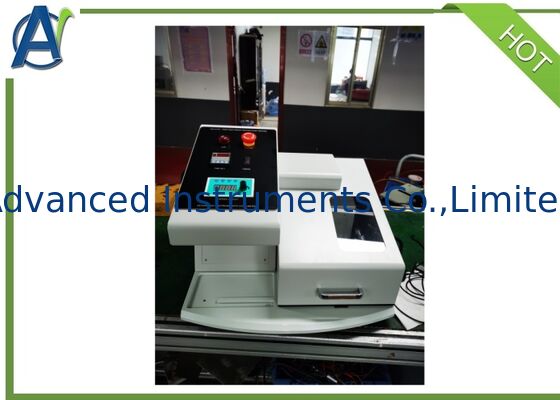

Fretting Wear Resistance Tester
I. Introduction:
Lubricating Grease Fretting Wear Resistance Tester is used to evaluate the anti-fretting wear characteristics of grease when the bearing swings. Under the specified test conditions, it can distinguish the low, medium and high anti-fretting wear ability of different greases. This test has been applied to predict the anti-fretting performance of automotive wheel bearing greases in long-distance transportation. The test principle is to swing two sets of thrust ball bearings with test grease at an amplitude of 0.21, a swing frequency of 30HZ, a load of 2450N, and room temperature, and the test time is 22 hours. The average value of the sum of the mass loss of the two sets of bearing races is used as the evaluation of the anti-fretting wear performance of the test grease.
II. Main Features
1.This fretting wear tester adopts two sets of standard thrust ball test bearings, with an inner diameter of 16mm ± 0.025mm and an outer diameter of 35.69 ± 0.025mm;
2.Control the motor with a frequency converter to improve control frequency accuracy and display the operating frequency digitally;
3.Oscillating bearing seat with fixing screws;
4.The fretting wear tester is provided with a set of standard fixtures;
5.Digital display time controller,beep prompt when test time is reached;
6.High precision spring guide cylinder, length 31.75mm ± 0.25mm, outer diameter 23.02mm ± 0.05mm, inner diameter 13.614mm ± 0.013mm;
III. Specifications:
| Applicable standard | SH/T0716, ASTM D4170 |
| Oscillating mode | motor drive |
| Oscillating arc | 12 degrees |
| Oscillating frequency | 30HZ |
| Bearing load | 2450N |
| Operating time | 22hours |
| Frequency controlling | frequency converter |
| Total power | 300W |
| Power supply | AC220v/50Hz |
FAQ
What's the delivery time?
About 30days.
What's your payment terms?
30% paid by T/T in advance,70% paid by by T/T before shipping.
What's your guarantee terms?
The warranty of all products is 1 year.During this period,we are responsible for all faults caused by us.And we can supply life-long technical support.
Can you supply training?
We can supply training in our factory and online training for free.If onsite installation and training are required,please pay for tickets,accommodation and salary USD280/Day for every person.
