제한되는 진보된 계기 Co.
질과 서비스에서 전진되기 위하여!
| 원래 장소: | 중국 |
|---|---|
| 브랜드 이름: | AI |
| 인증: | ISO9001 |
| 모델 번호: | KRL |
| 최소 주문 수량: | 1세트 |
| 가격: | USD$20,000~26,000 |
| 포장 세부 사항: | 합판 케이스 |
| 배달 시간: | 30일 |
| 지불 조건: | T/T, 서부 동맹, L/C |
| 공급 능력: | 달 당 20개 세트 |
| 테스트 표준: | Cec L-45-a-99 | 보증: | 1년 |
|---|---|---|---|
| 트랜드마크: | 고급 장비 | OEM 서비스: | 사용 가능 |
| 언어: | 영어 | 전원공급장치: | AC (220 ± 10%) V, 50Hz |
| 소프트웨어 언어: | 영어 | 시험방법: | 테오스트 Mht |
| 온도 정확도: | ± 2 ℃ | 샘플 수량: | 8.4G |
| 가스 흐름 속도: | 10ml±0.2ml | 작업: | 오토매틱 |
| 온도 범위: | 주변~500℃ | 테스트 시간: | 24시간 |
| 펌프 흐름 속도: | 0.25g/Min | 표시하다: | 주도의 |
| 기구: | 석유화학제품 | 온도 조절 범위: | 주위~-50℃ |
| 회전 속도: | 1rpm | 적재질량: | 400H |
| 냉동방식: | 댄포스 이중 공기 압축기 | 타이밍법: | 디지털 타이머 |
| 토크 측정: | 디지털 포스 게이지 | 총 전력: | 2KW |
| 최대. 적재 공간 높이: | 80mm | 맥스. 시험 폭: | 200mm |
| 최대. 크로스헤드 여행: | 80mm | 맥스. 시험 하중: | 10kN (임의로 설정 가능) |
| 테스터 클래스: | 0.5 | 호스트 크기: | 570mm×370mm×845mm |
| 강조하다: | KRL tapered roller bearing tester,lubricant shear stability tester,ISO 26422 oil test equipment |
||

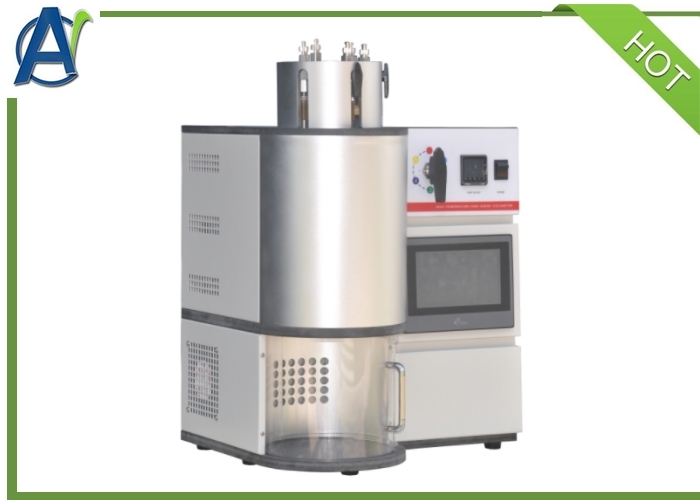

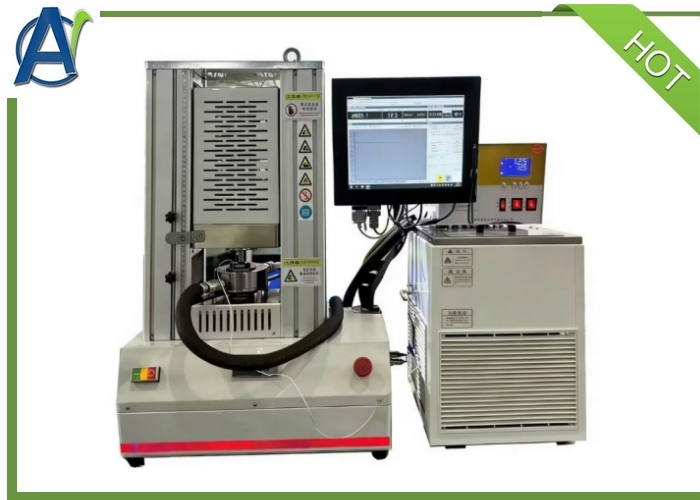

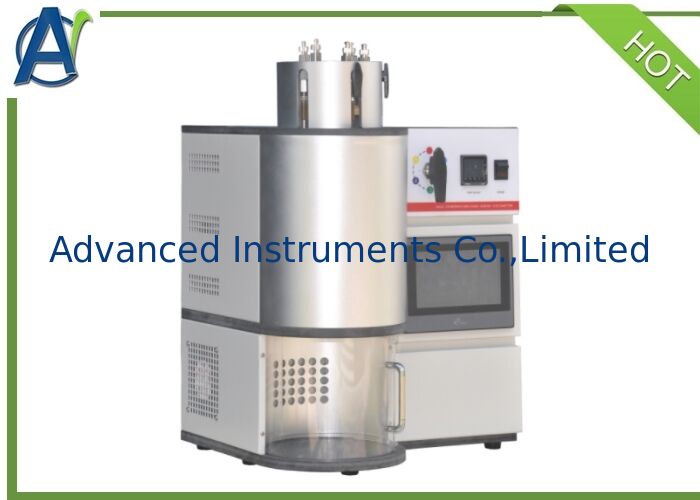

KRL Tapered Roller Bearing Shear Tester
I. Introduction:
KRL Tapered Roller Bearing method determines viscosity and shear stability of Transmission Lubricants,
This KRL Shear Stability Tester adopts LCD touch screen: through the screen, the oil sample temperature control, rotating shaft speed, test load, test time, shear revolution and other functions can be controlled. All key parameters and control points can be displayed at a glance, realizing a highly integrated and automated operation interface, which greatly reduces the operation difficulty of the experimenter.
II. Main Features
1. The equipment complies with NB/SH/T0845 test method. The system adopts microcomputer closed-loop control for loading force, servo motor for precise speed control, and intelligent temperature controller for constant temperature water bath maintenance. It features a wide range of loading speeds, high precision, and high sensitivity.
2. Multiple control modes can be combined for operation, with flexible test parameter settings and full-process operation management.
3. System composition: High-precision sensors + servo motor + dedicated controller + measurement & control software + branded microcomputer, fully automatic measurement and control platform.
4. Built-in 20+ domestic common data upload interfaces with expandable support functions.
5. Supports equipment parameter settings, online management, PID adjustment, and full-function sensor calibration & verification.
6. Supports real-time/historical curve display in single or multiple graphs, with preset or online coordinate settings; curve panning, zooming, and data traversal operations; feature point display, modification, and saving; curves can be printed independently or embedded in test reports.
7. Real-time automatic data saving effectively prevents data loss due to unexpected shutdowns.
8. Supports test data query and search management; customizable report content and format through report templates; editable formulas and result items to meet various test standards; supports generating reports from single or multiple data files, compatible with free editing of Word/Excel templates, with print output capability.
9. Test data query function: Quick search of previously completed test data and results by test time, test protocol, and other conditions.
III. Specifications:
|
Applicable standard
|
NB/SH/T0845-2010, CEC L-45-99
|
|
Max. Loading Space Height
|
80mm
|
|
Max. Test Width
|
200mm
|
|
Max. Crosshead Travel
|
80mm
|
|
Max. Test Force
|
10 kN (arbitrarily settable)
|
|
Tester Class
|
0.5
|
|
Test Force Measurement
Range |
0.4% - 100% FS
|
|
Test Force Measurement
Accuracy |
±0.5%
|
|
Test Force Resolution
|
1/500,000 of full scale (single resolution across full range, no gears)
|
|
Max. Test Speed
|
3000 r/min (arbitrarily settable)
|
|
Speed Accuracy
|
±0.5%
|
|
Host Dimensions
|
570mm × 370mm × 845mm
|
|
Approx. Weight
|
60kg
|
|
Power
|
1.0 + 0.4 kW
|
|
Power Supply
|
Single phase 220V±10%, 50Hz
|
|
Environmental Requirements
|
Vibration-free, dust-free; Ambient temperature
10℃~35℃; Humidity ≤80%; No vibration around, no corrosive media, no strong magnetic field interference. |
FAQ
What's the delivery time?
About 30days.
What's your payment terms?
30% paid by T/T in advance,70% paid by by T/T before shipping.
What's your guarantee terms?
The warranty of all products is 1 year.During this period,we are responsible for all faults caused by us.And we can supply life-long technical support.
Can you supply training?
We can supply training in our factory and online training for free.If onsite installation and training are required,please pay for tickets,accommodation and salary USD280/Day for every person.
