| 원래 장소: | 중국 |
|---|---|
| 브랜드 이름: | AI |
| 인증: | ISO |
| 모델 번호: | PC-P6R |
| 최소 주문 수량: | 1세트 |
| 가격: | USD$10,000~15,000 |
| 포장 세부 사항: | 합판 케이스 |
| 배달 시간: | 30일 |
| 지불 조건: | T/T, 서부 동맹, L/C |
| 공급 능력: | 달 당 50sets |
| 테스트 표준: | ISO4406, NAS1638, SAE4059cpc | 보증: | 1년 |
|---|---|---|---|
| 트랜드마크: | 고급 장비 | OEM 서비스: | 사용 가능 |
| 언어: | 영어 | 광원: | 반도체 레이저 |
| 입자 크기 범위: | 0.8~600μm | 감지 채널: | 64개 채널, 사용자 설정 가능 입자 크기 |
| 샘플링 볼륨: | 0.2~6000mL | 표본화 정확도: | ±0.5% 이상 |
| 샘플링 유량: | 샘플링 유속 5~80mL/min | 플러시 유량: | 5 ~ 80 ml/분 |
| 강조하다: | ISO4406 hydraulic oil cleanliness tester,NAS1638 portable oil particle counter,GJB420A/B oil test equipment |
||

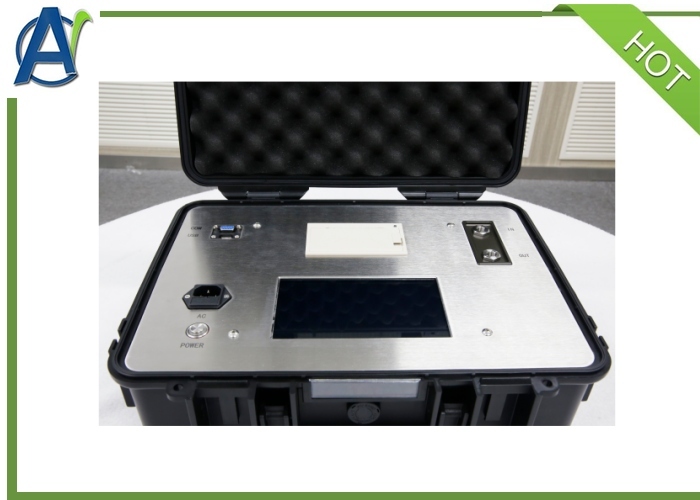

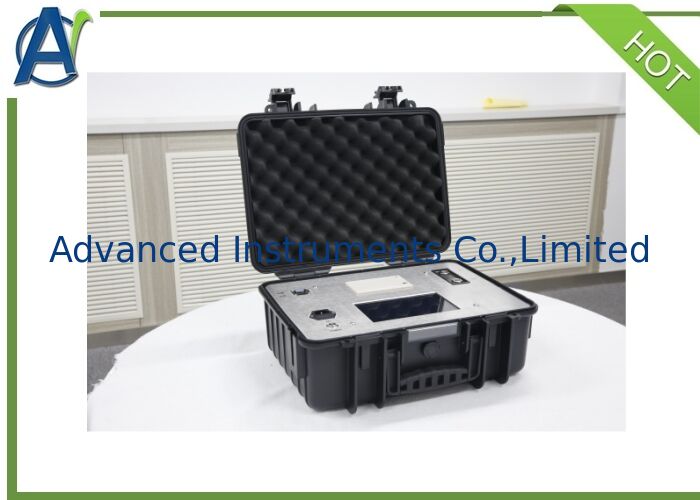

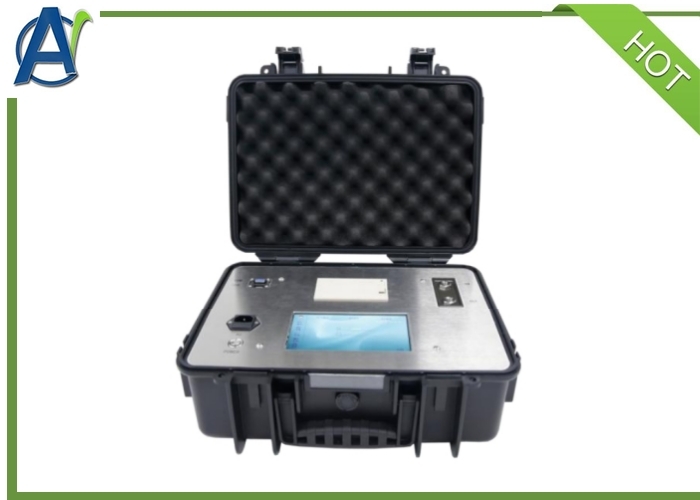

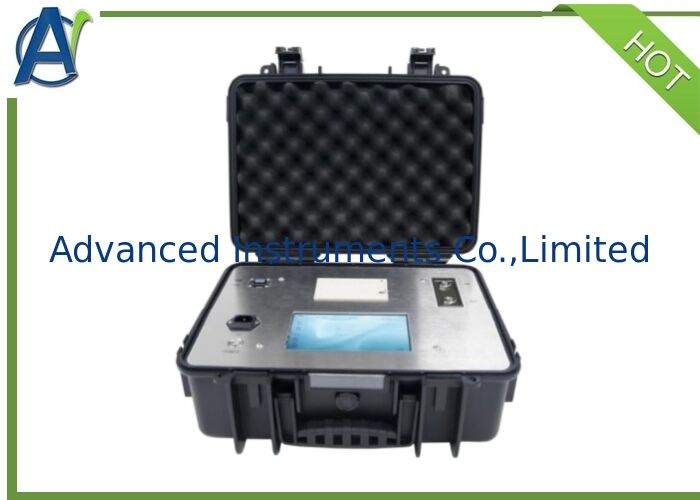

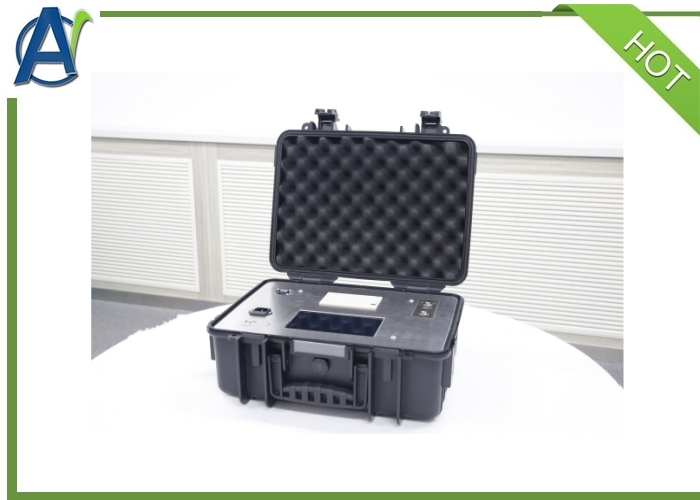

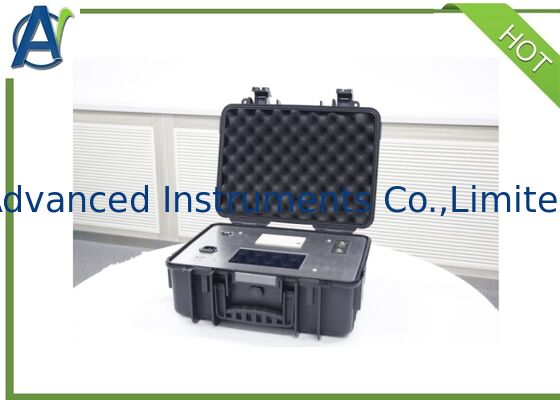

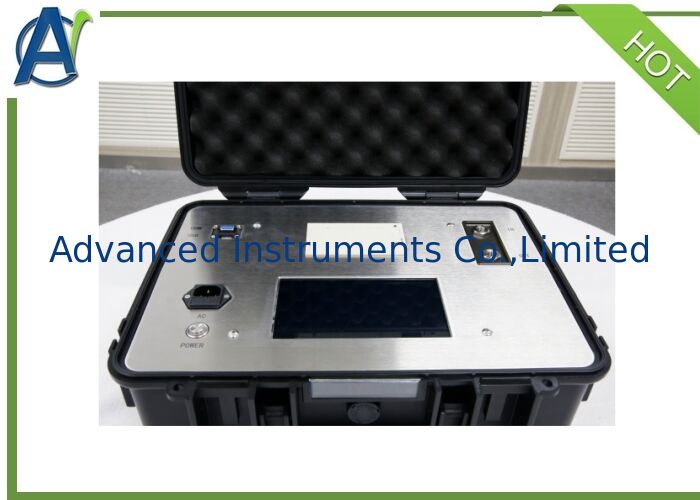

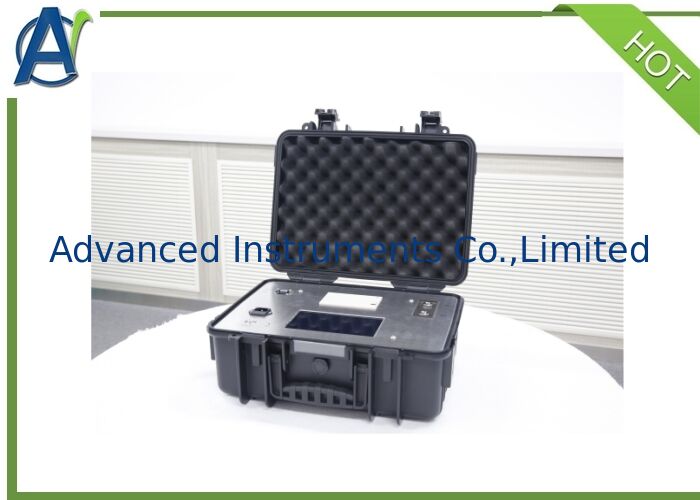

Portable Oil Particle Counter
I. Introduction:
Portable Lubricant Oil Particle Counter is photoresist (light shading) counting principle specified by the International Hydraulic Standards Committee.It is mainly for laboratory or on-site testing the degree of particle contamination and moisture in the oil. It has the advantages of small volume, light weight, fast detection speed, high precision and good repeatability, and can work under high temperature and high pressure environment. It is applicable for the measurement of engine oil, gear oil, transformer oil (i.e. insulating oil), hydraulic oil, lubricating oil, synthetic oil and other oils, widely used in aerospace, petrochemical, transportation ports, steel metallurgy, automobile manufacturing and other fields.
II. Main Features
III. Specifications:
| Parameter | Specification |
| Light Source | Semiconductor laser |
| Particle Size Range | 0.8 – 600 μm (Calibrated per ACFTD 1–100 μm or ISO MTD 4–70 μm(c)) |
| Detection Channels | 64 channels, user- settable particle sizes |
| Sampling Volume | 0.2-6000ml |
| Sampling Accuracy | Better than ±0.5% |
| Sampling Flow Rate | 5-80ML/MIN |
| Flush Flow Rate | 5-80ML/MIN |
| Flush Volume | Adjustable from 0 mL to 90 mL |
| Counting Accuracy | Error < ±5% |
| Resolution | Better than 6% |
| Repeatability | RSD < 2% |
| Coincidence Error Limit | 40,000 particles/mL |
| Temperature Measurement (Optional) | Range: -40 to 100 °C; Accuracy: ±0.5 °C |
| Moisture (Optional) | Water activity: 0–1 aw, Accuracy: ±0.03; Absolute water content: 1–360 ppm, Accuracy: ±10% |
| Viscosity (Optional) | 0.5 – 500 cSt, Accuracy: ±2% |
| Offline Viscosity Limit | ≤100 cSt (with optional pressure bottle sampler, up to 400 cSt) |
| Pressure Range | Low pressure: 0–0.6 MPa; High pressure: up to 42 MPa (optional pressure reducing valve) |
| Online Measurement Interval | User- settable |
| Screen Size | 7 inches |
| Sample Temperature Range | 0 °C – 80 °C |
| Operating Temperature Range | -20 °C – 60 °C |
| Storage Temperature Range | -30 °C – 80 °C |
| Power Supply | AC 90–240 V, 50/60 Hz |
| Battery Capacity | 5200 mAh |
| Battery Runtime | 6 – 8 hours |
| Dimensions | 420 × 326 × 182 mm |
| Weight | 9 kg |
FAQ
What's the delivery time?
About 30days.
What's your payment terms?
30% paid by T/T in advance,70% paid by by T/T before shipping.
What's your guarantee terms?
The warranty of all products is 1 year.During this period,we are responsible for all faults caused by us.And we can supply life-long technical support.
Can you supply training?
We can supply training in our factory and online training for free.If onsite installation and training are required,please pay for tickets,accommodation and salary USD280/Day for every person.
