제한되는 진보된 계기 Co.
질과 서비스에서 전진되기 위하여!
| 원래 장소: | 중국 |
|---|---|
| 브랜드 이름: | Advanced Instruments |
| 인증: | ASTM D943 |
| 모델 번호: | AIC-943 |
| 최소 주문 수량: | 1세트 |
| 가격: | US$5000-10,000/set |
| 포장 세부 사항: | 합판 케이스 |
| 배달 시간: | 30일 |
| 지불 조건: | t/t, l/c, d/p |
| 공급 능력: | 달 당 50sets |
| 테스트 표준: | ASTM D943 | 보증: | 1년 |
|---|---|---|---|
| 트랜드마크: | 고급 장비 | 전원공급장치: | AC220V 50Hz |
| OEM 서비스: | 사용 가능 | 가열방식: | 전기 가열로드 |
| 온도 제어 모드: | 수입된 PID 온도 조절기 | 온도 제어 정확도: | 주변~200±0.1℃ |
| 워킹 유니트: | 6 유닛 | 흐름 제어: | 정확성 유량계 |
| 총 전력: | 약 2.5kW | 유량 범위: | 0 ~ 200mL/h |
| 강조하다: | Oxidation stability tester ASTM D943,Mineral oil oxidation tester,Oil test equipment with warranty |
||

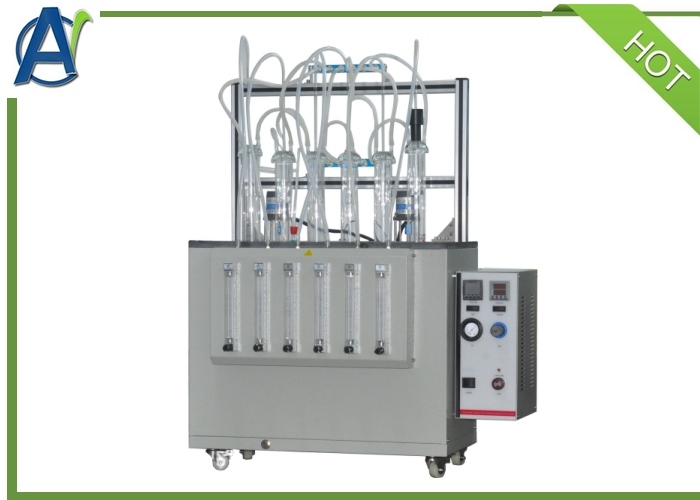

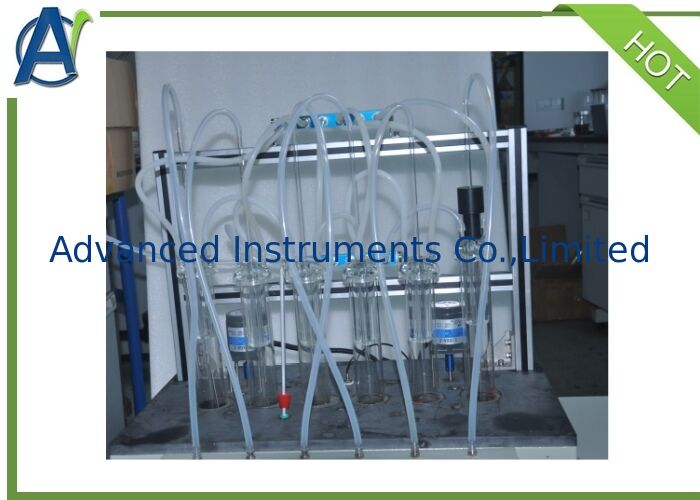

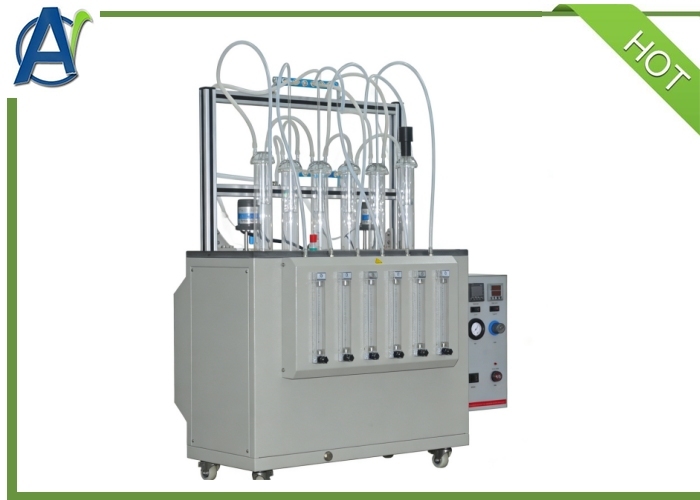

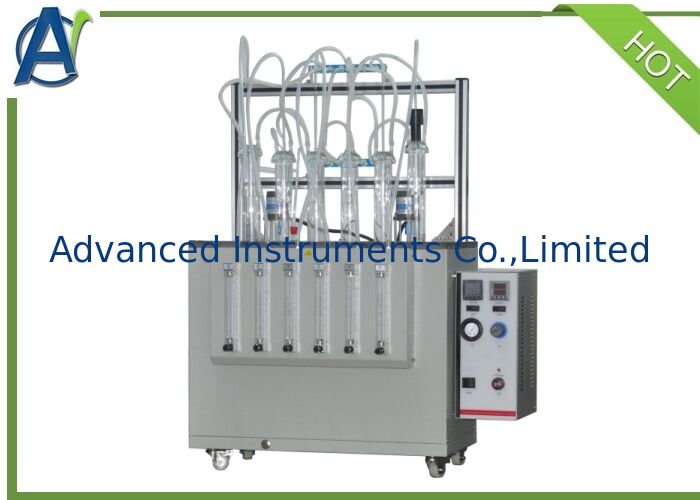

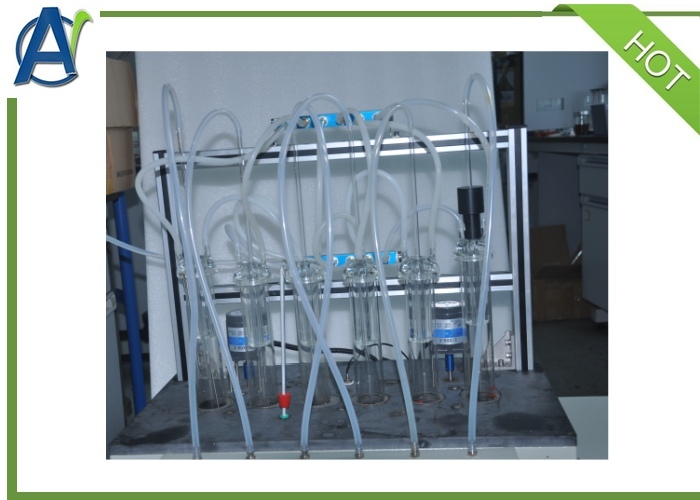

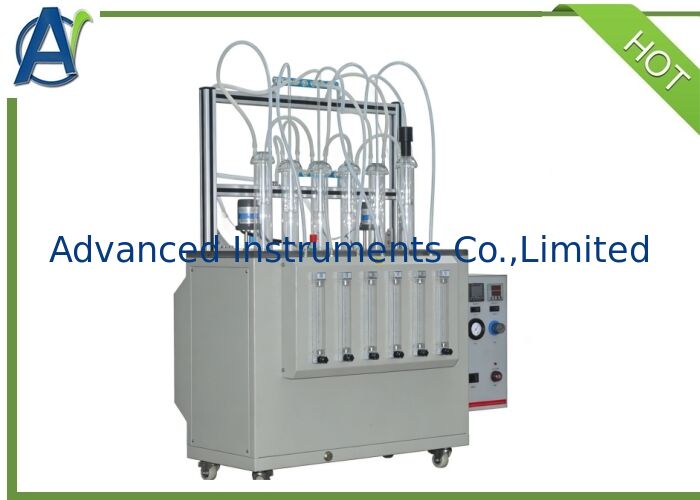

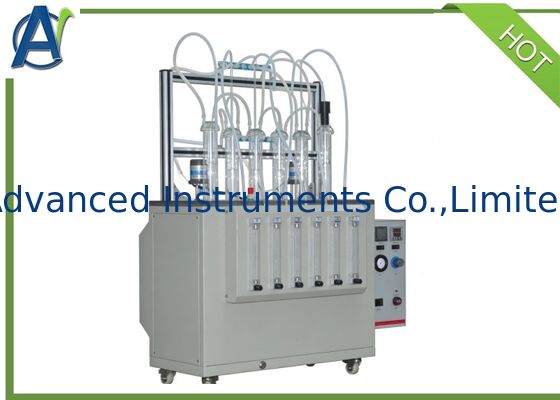

This Inhibited Mineral Oil Oxidation Stability Tester is suitable for determining the oxidative stability of unused mineral insulating oils with inhibitors, and can also be used for the tendency of unused mineral insulating oils to form acids and precipitates before and after the induction period. Mechanism: The sample was kept at 120°C in the presence of the copper catalyst coil, while a constant flow of oxygen was passed through, and the time required for the volatile acid generated by the oxidation of the sample to increase to a neutralization value equivalent to 0.28 gKOH/g was measured. The oxidative stability of the sample is represented by the induction period (h).
|
Applicable standards
|
ASTM D943
|
|
Heating mode
|
Electric heating rod
|
|
Temperature Control Mode
|
Imported digital display PID temperature controller
|
|
Temperature Control Accuracy
|
±0.1℃
|
|
Temperature Control Range
|
Ambient temperature ~ 120℃
|
|
Working units
|
6 Units
|
|
Timing Mode
|
Digital display timer
|
|
Flow Range
|
0 ~ 200 mL/h
|
|
Flow Control
|
Precision flow meter
|
|
Total Power
|
About 2.5KW
|
|
Dimension
|
630mm*710mm*930mm
|
|
Net Weight
|
50 kg
|
|
Power supply
|
AC 220V ,50Hz
|
