| 원래 장소: | 중국 |
|---|---|
| 브랜드 이름: | Advanced Instruments |
| 인증: | ASTM D4007 |
| 모델 번호: | AIC-5Y |
| 최소 주문 수량: | 1세트 |
| 가격: | US$3500-4500/set |
| 포장 세부 사항: | 합판 케이스 |
| 배달 시간: | 20일 |
| 지불 조건: | t/t, l/c, d/p |
| 공급 능력: | 한 달에 200sets |
| 테스트 표준: | ASTM D4007 | 보증: | 1년 |
|---|---|---|---|
| 운송 패키지: | 합판 케이스 | 트랜드마크: | 고급 장비 |
| 전원공급장치: | AC220 V 50Hz | OEM 서비스: | 사용 가능 |
| 소프트웨어 언어: | 영어 | 최대 회전 속도: | 4000R/분 |
| 최대 상대 원심력: | 3756*G | 최대 용량: | 4*100ml |
| 타이밍 범위: | 0~99min | 회전 속도의 정확도: | ±10r/분 |
| 무게: | 63Kg | 차원: | 592mm×440mm×370mm |
| 강조하다: | ASTM D4007,Total Centrifuge Test Equipment,Crude Oil Centrifuge Machine |
||

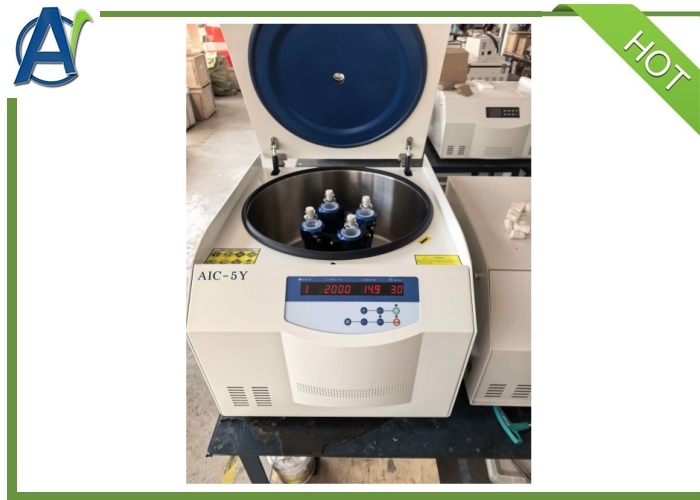

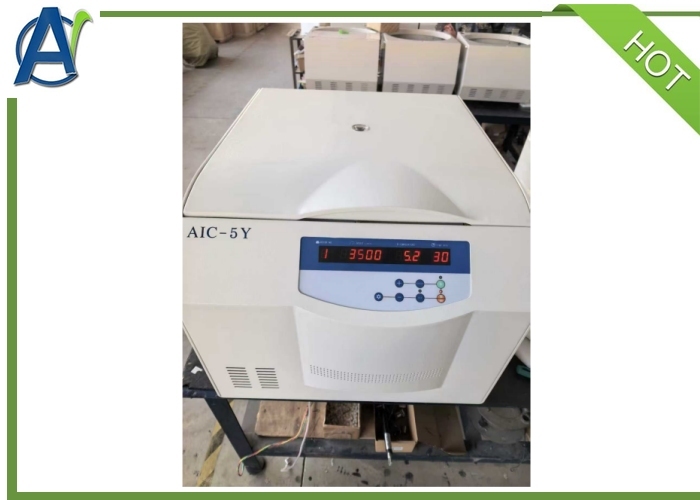

AIC-5Y benchtop low speed centrifuge can separate,concentrate and purify specimen such as emulsion and suspension.It is designed according to GB/T6533-86,especially used to determine water and sediment in crude oil (Centrifuge method). This instrument is driven by ac variable frequency motor,rotating speed and time are displayed digitally.Electrical controlling system is controlled by mic-processor, key-press programmable method,easy operation,humanization design and beautiful appearance.
This centrifuge machine uses electronic door lock,if the door is not covered well(unlocked),the centrifuge can not be started.When it is running,press key of Lock,the door cover can not be opened.Please wait till the rotating speed is zero,press key Lock,the cover can be opened.. It adopts optimal design for damping system,the running is stable with slight shaking,low noisy and good separation performance.
This centrifuge equipment complies to GB/T6533-86 and IEC61010-2-020:1992.
|
Max.rotating speed
|
4000r/min
|
Total power
|
1.5kw
|
|
Max.relative centrifugal force
|
3756xg
|
Power supply
|
Ac220V 50Hz 10A
|
|
Max.capacity
|
4×100ml
|
Noise
|
≤60dB(A)
|
|
Accuracy of rotating speed
|
±10r/min
|
Net weight
|
63kg
|
|
Temperature setting range
|
Room temperature/heating to 80ºC
|
Temperature controlling range
|
±1ºC if 40~60ºC
|
|
Shortest time of speed-up and speed-down |
Can be set at random |
Door lock type |
Electronic door lock |
|
Timing range |
0~99min |
Diameter of centrifugal chamber |
500mm |
|
Motor |
AC varied frequency |
Display screen |
Digital |
|
Overall dimension |
592×440×370mm(L×W×H) |
Driving mode |
Direct driving |
