| 원래 장소: | 중국 |
|---|---|
| 브랜드 이름: | Advanced Instruments |
| 인증: | ASTM D5293 ASTM D2602 |
| 모델 번호: | CCS-III |
| 최소 주문 수량: | 1세트 |
| 가격: | US$65000-75000/set |
| 포장 세부 사항: | 합판 케이스 |
| 배달 시간: | 40일 |
| 지불 조건: | t/t, l/c, d/p |
| 공급 능력: | 달 당 20개 세트 |
| 테스트 표준: | ASTM D5293; ASTM D2602 | 보증: | 1년 |
|---|---|---|---|
| 운송 패키지: | 합판 케이스 | 트랜드마크: | 고급 장비 |
| 냉동방식: | 반도체 | 전원공급장치: | AC220 V 50Hz |
| 견본 추출: | 오토매틱 | OEM 서비스: | 사용 가능 |
| 온도 범위: | -5℃~-35℃ | 작업: | 컴퓨터 제어용 |
| 애플리케이션: | 엔진 오일 테스트 | 기능: | 저온 동적 점도 지수 테스트 |
| 소프트웨어 언어: | 영어 | 테스트 셀: | 16개 샘플 연속 테스트 |
| 강조하다: | ASTM D5293,ASTM D2602,Automatic Apparent Viscosity Tester |
||

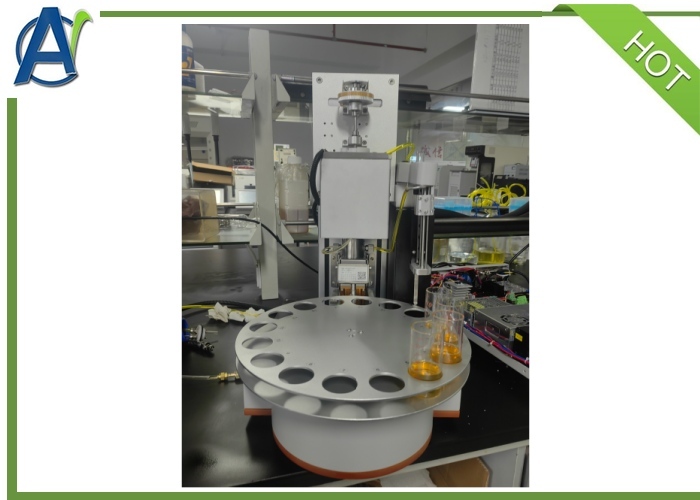

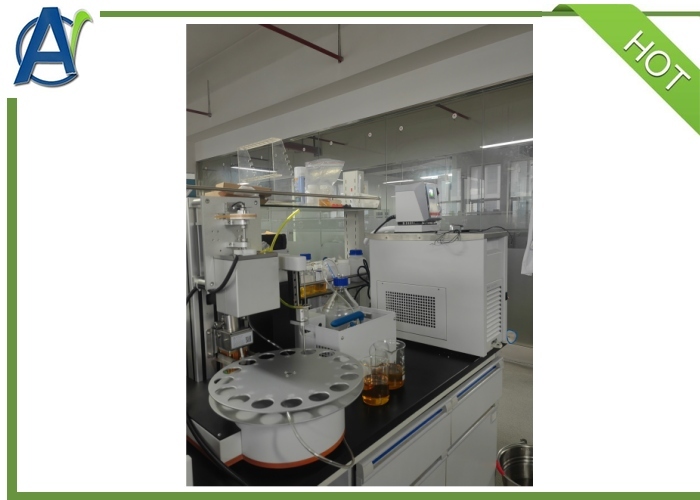

The Cold Cranking Simulator mainly tests the low-temperature dynamic viscosity index of engine oil, and the instrument is automatically controlled by a computer. Automatic sampling,cleaning, and viscosity calculation results.
1. The Cold Cranking Simulator can automatically detect speed and control current, reduce human error;
2. Driven by imported motor, high precision;
3. Semiconductor refrigeration system can quickly test any temperature;
4. The result is automatically calculated after calibration by standard oil;
5. Computer control, Windows operating system, XP, Win7, can be connected to a printer to print results;
6. Improved rotor, low torque test state, high repeatability;
7. Automatically generate calibration curve and directly display the test viscosity result;
8. All test processes are controlled automatically without manual operation, and the test will automatically stop and increase
temperature after the test;
9. The CCS Cold Cranking Simulator can automatically recommends the refrigeration temperature;
10. Rotary encoder detects speed;
11. Viscosity measurement range: 900mPa.s~25000mPa.s;
12. The results of 20 standard oils can be edited;
13. This Cold Cranking Simulator is equipped with dedicated low-temperature refrigeration cycle equipment
14. The Apparent viscosity tester can automatically calculate the standard oil calibration deviation to help users check the accuracy of the calibration data;
15.All working status displayed on LCD screen.
16. Patent of Cold Cranking Simulator using semiconductor refrigeration, patent number: ZL201822076893.4
17. Patent of lubricating oil apparent viscosity tester with automatic sampling and automatic cleaning structure, patent number:ZL201822076944.3.
|
Applicated standard
|
GB/T6538, ASTM D2602,ASTM D5293
|
|
Refrigeration method
|
Semi-conductor
|
|
Circulatioini method
|
multifunctional plastic steel pump
|
|
Temp.controlling method
|
Digital PID temperature controller
|
|
Detection method
|
Automatic sampling,automatic cleaning,automatic test
|
|
Data processing
|
Automatic saving
|
|
Temp.controlling range
|
-5ºC -10ºC -15ºC -20ºC -25ºC -30ºC -35ºC (optional -40ºC)
|
|
Power supply
|
AC220 V 50Hz
|
|
Temperature controlling accuracy
|
±0.02ºC
|
|
Testing Cell
|

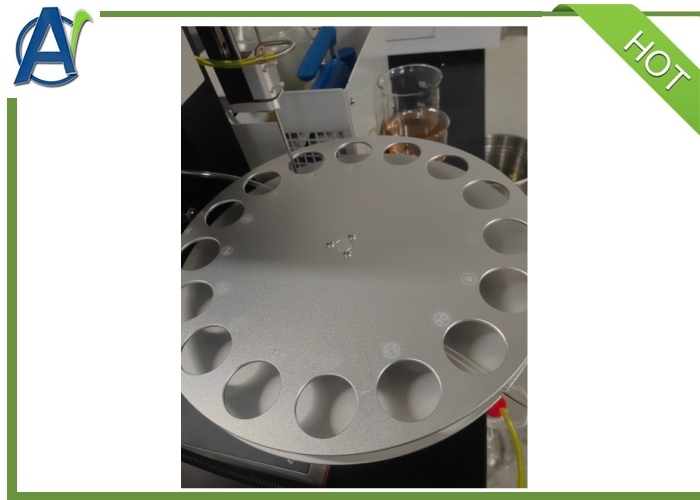

16 Samples Continuous Testing
|
