제한되는 진보된 계기 Co.
질과 서비스에서 전진되기 위하여!
| 원래 장소: | 중국 |
|---|---|
| 브랜드 이름: | Advanced Instruments |
| 인증: | ISO9001 |
| 모델 번호: | AIC-7279 |
| 최소 주문 수량: | 1세트 |
| 가격: | US$5000-10000/set |
| 포장 세부 사항: | 합판 케이스 |
| 배달 시간: | 40일 |
| 지불 조건: | t/t, l/c, d/p |
| 공급 능력: | 달 당 20개 세트 |
| 테스트 표준: | ASTM D7279;ASTM D445 | 보증: | 1년 |
|---|---|---|---|
| 운송 패키지: | 합판 케이스 | 트랜드마크: | 고급 장비 |
| 전원공급장치: | AC220V±10%,50Hz | OEM 서비스: | 사용 가능 |
| 온도 범위: | 주변 ~ 150 ℃ | 애플리케이션: | 엔진 오일 테스트 |
| 기능: | 저온 동적 점도 지수 테스트 | 소프트웨어 언어: | 영어 |
| 시험방법: | 다중셀 모세관 점도계 | 온도 정확도: | 0.1℃ |
| 유량 범위: | 0~200ml/H | 표시 내용: | 테스트 압력, 테스트 시간, 일정한 시간 |
| 제어: | 터치스크린 | 기구: | 석유화학제품 |
| 온도 조절 범위: | 20~100℃ | 워킹 유니트: | 2 |
| 가열방식: | 나선형 전기 히터 | 데이터 저장: | 1000개 그룹의 테스트 결과 |
| 전반적인 힘: | 1500W | 온도 조종 정확도: | ±0.02℃ |
| 제어 모드: | 자동 측정, 세척 및 건조 | ||
| 강조하다: | ASTM D7279,ASTM D445,Kinematic Viscometer |
||

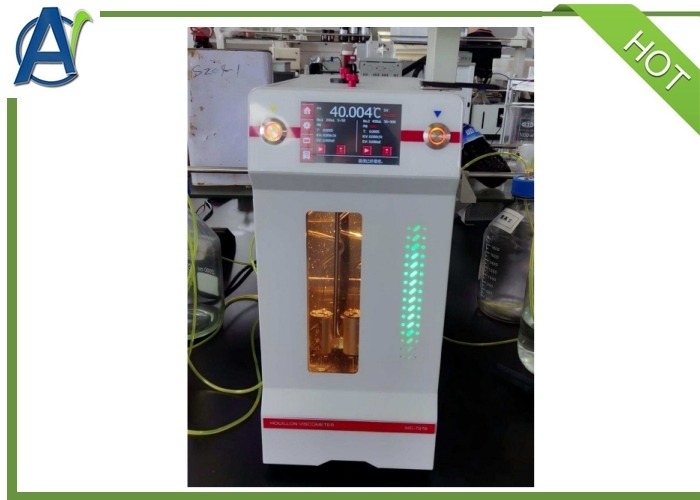

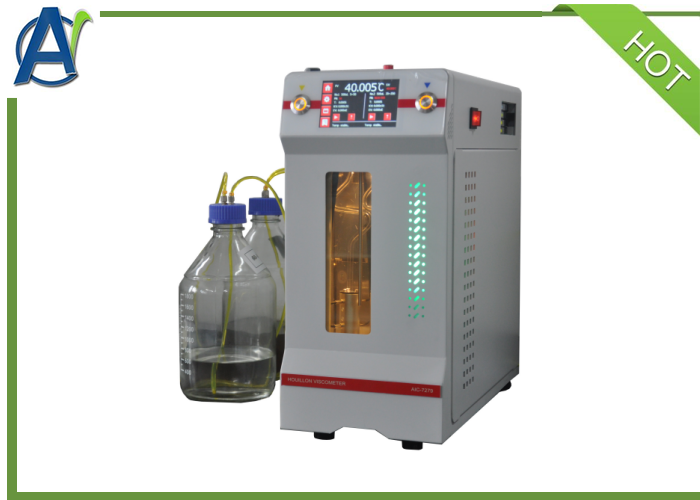

This Automatic Rapid Kinematic Viscometer is used to measure the kinematic viscosity of transparent and opaque liquids, including crude oil, light and heavy fuel oils, lubricating oils, additives, waste oils, residual oils, etc.
It quantitatively determines the kinematic viscosity of various Newtonian fluids at any temperature from 20°C to 100°C, and can calculate the viscosity index.
The instrument features automatic cleaning, automatic drying and automatic result calculation, with micro-volume detection, saving labor and consumables, and delivering fast testing speed.
1.Controlled by a single-chip microcomputer with color touch screen display, stable and reliable.
2.Fast measurement: results available in 30 seconds, generally within 3–5 minutes.
3.User-friendly human-machine interface for easy operation.
4.High degree of automation: measurement, cleaning, drying and result calculation are fully automatic.
5.Efficient and low-cost cleaning: cleaning solution consumption is generally less than 10 mL per cycle.
6.Dual over-temperature protection (software & hardware), over-temperature alarm and dry-heating prevention function.
7.Low sample volume required: less than 1 mL.
8.Test results are highly consistent with standard methods GB/T 265 and GB/T 11137.
9.The test process fully meets national standard requirements with reliable data.
10.Capable of calculating viscosity index.
11.Tri-color indicator lights for working status prompt.
12.Multi-point temperature calibration function available.
| Model | AIC-7279 |
| Applicable Standards | ASTM D7279;ASTM D445 |
| Viscosity Measuring Range | 0.5 ~ 3000 mm²/s (selectable viscometer tube according to viscosity range) |
| Temperature Control Range | 20 ~ 100℃ (external cooling source required at 20℃) |
| Temperature control accuracy | ±0.02℃ |
| Measuring unit | 2 Units |
| Timing Accuracy | ±0.01 s |
| Test Accuracy | ≤0.68% |
| Heating Method | Spiral electric heater |
| Display | Color touch screen |
| Control Mode | Automatic measurement, cleaning and drying |
| Data Storage | 1000 groups of test results |
| Power Supply | AC220 V ±10%, 50Hz |
| Total Power | 1500W |
| Dimensions | 400mm×200mm×480 mm |
| Net Weight | 17KG |
1.What's the delivery time?
About 40days.
2.What's your payment terms?
30% paid by T/T in advance,70% paid by by T/T before shipping.
3.What's your guarantee terms?
The warranty of all products is 1 year.During this period,we are responsible for all faults caused by us.And we can supply life-long technical support.
4.Can you supply training?
We can supply training in our factory and online training for free.If onsite installation and training are required,please pay for tickets,accommodation and salary USD280/Day for every person.
