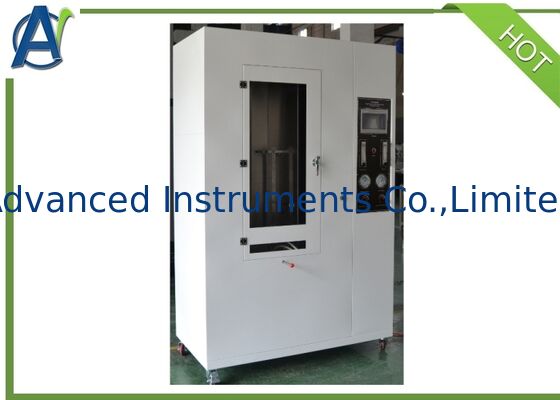

IEC60332-1~2 Single Insulated Wire and Cable Vertical Combustion Tester (Rotor Flow Meter)

Single wire and cable vertical flame propagation tester is in accordance with IEC 60332-1-2:2004 <Test
on electric and optical fiber cables under fire conditions-Part 1-2: Test for vertical flame propagation for
a single insulated wire or cable>. Obtain and determine wire and cable's capability of prevent the fire
from spreading under fire condition.

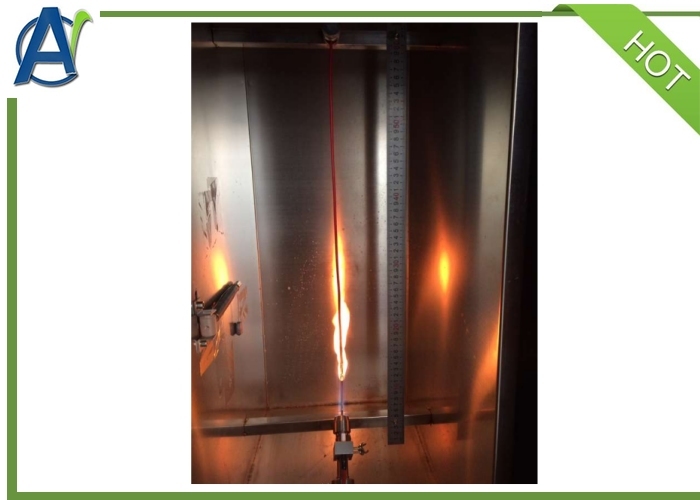

Used for gaining and determining cable's capability of prevent the fire from spreading. Get one piece of 600mm cable as a testing sample, fix it on the clamp after processing. Select fire time based on testing sample specifications, judge the testing result according to the judgment.

• GB/T18380.(11-12) - 2022;
• IEC60332-1~2-2015

• Metal covering size:1200mm(W)x300mm( D)x450mm(H) open the front side.
• Blast burner: nominal power 1kw.
• Controlling way: set burning time to be the preinstall time and the instrument will stop fire automatically.
• Burning device: ignition is automatic high-tension ignition.
• Flow rate: air flow 1.5~15L/min(adjustable),gas flow0.1~1L/min(adjustable).
• Equipped with a separate controlling exhaust fan on the top.

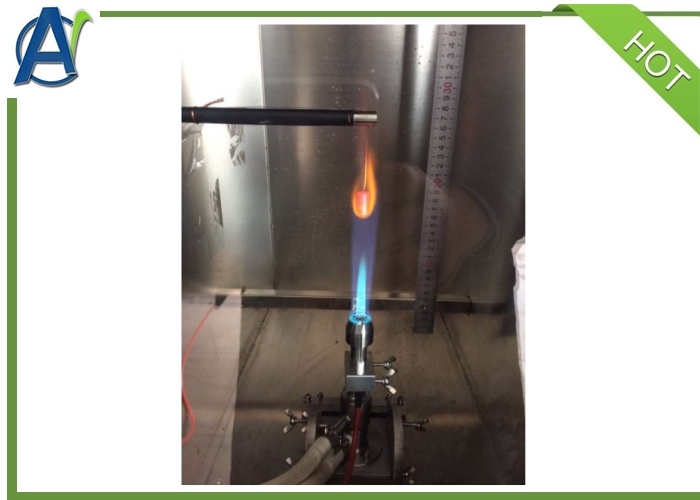

• Flame inspection device: one piece of import thermocouple 0.5 K,one piece of electrolytic copper 9mm with weight 10g±0.05g,one set of temperature display device,one set of time display device.

• Overall Dimensions: 630mm*600mm*2170mm
• Power supply: AC 220V, 50/60Hz, 2A
• Air source: propane and air( prepared by user)
