제한되는 진보된 계기 Co.
질과 서비스에서 전진되기 위하여!
| 원래 장소: | 중국 |
|---|---|
| 브랜드 이름: | Advanced Instruments |
| 인증: | ASTM D381 |
| 모델 번호: | EGT-2 |
| 최소 주문 수량: | 1세트 |
| 가격: | US$3000-4000/set |
| 포장 세부 사항: | 합판 케이스 |
| 배달 시간: | 15일 |
| 지불 조건: | T/T, 신용장, D/P |
| 공급 능력: | 달 당 50개 세트 |
| 테스트 표준: | ASTM D1319 | 전원공급장치: | AC220V±10%, 50Hz |
|---|---|---|---|
| 최대 전력 소비: | 3500W | 증발욕: | 알루미늄 욕조 블록 Φ260mm×130mm |
| 전기 진동자: | 두 개의 하위 시스템을 각각 제어 | 구멍 수 테스트: | 5 |
| 테스트 홀 크기: | Φ51mm×70mm | 작동 온도: | 160~165℃ |
| 공기 감소 밸브 작동 압력: | 0.07MPa | 상대습도: | ≤85% |
| 공기 유량: | (600±90)mL/s | ||
| 강조하다: | ASTM D381,Petroleum Existent Gum Analyzer,Gasoline Existent Gum Test Equipment |
||
Purpose and scope

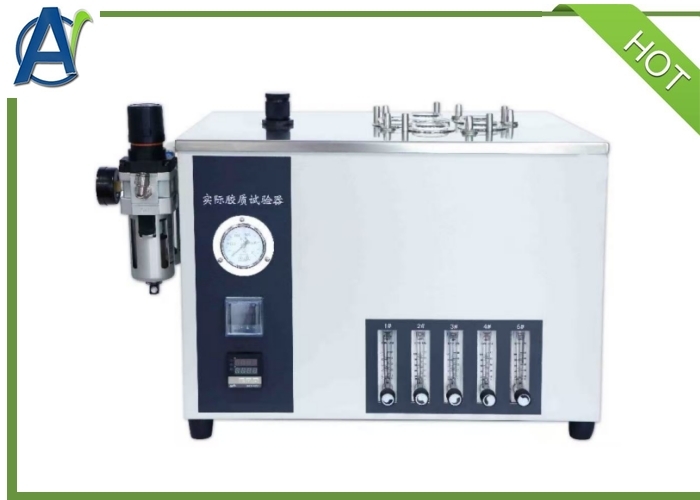

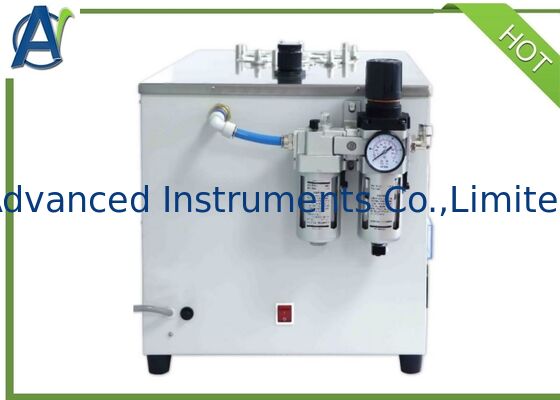

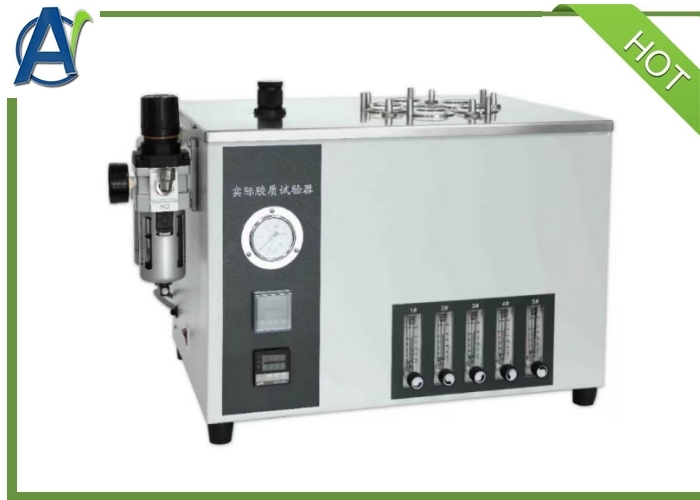

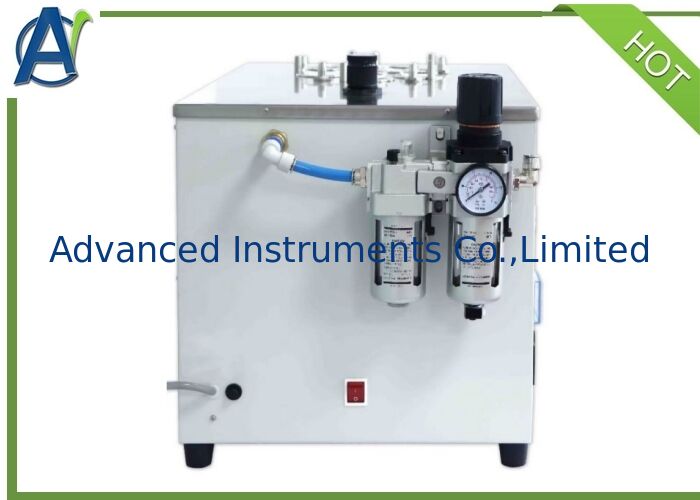

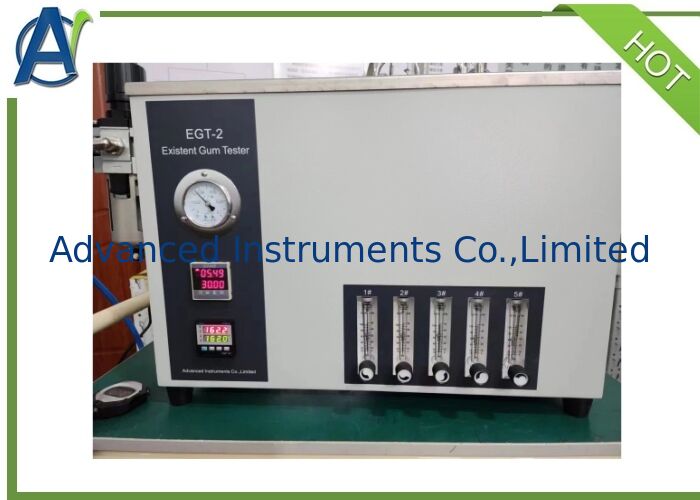

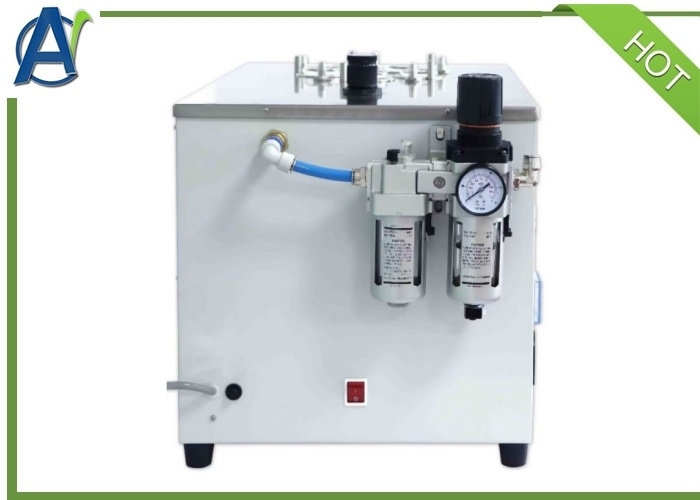

The Petroleum Products Existent Gum Content Tester is designed and made as per standards GB/T 8019 Standard test method for gum content in fuels by jet evaporation and ASTM D381 Standard test method for gum content in fuels by jet evaporation. It is suitable to determine the existent gum content of aviation gasoline and motor gasoline(Not suitable to determine the existent gum content of aviation turbine fuel).
|
Operating Power supply
|
AC220V±10%, 50Hz
|
|
The whole power consumption
|
3500W
|
|
Evaporative bath
|
Aluminum bath block φ260mm×130mm (diameter × height)
|
|
Test the number of holes
|
5
|
|
Test hole size
|
φ51mm×70mm (inner diameter× depth)
|
|
Operating temperature
|
160~165℃
|
|
Air reducing valve working pressure
|
0.07MPa
|
|
Air flow rate at the outlet of the nozzle
|
(600±90)mL/s per well at room temperature and pressure
|
| Applicable environment | Temperature: 15°C~35°C, Relative Humidity: ≤85% |
| Dimensions | 590mm×480mm×340mm |
FAQ
1.What's the delivery time?
About 15days.
2.What's your payment terms?
30% paid by T/T in advance,70% paid by by T/T before shipping.
3.What's your guarantee terms?
The warranty of all products is 1 year.During this period,we are responsible for all faults caused by us.And we can supply life-long technical support.
4.Can you supply training?
We can supply training in our factory and online training for free.If onsite installation and training are required,please pay for tickets,accommodation and salary USD280/Day for every person.
