제한되는 진보된 계기 Co.
질과 서비스에서 전진되기 위하여!
| 원래 장소: | 중국 |
|---|---|
| 브랜드 이름: | AI |
| 인증: | ISO |
| 모델 번호: | PQ-3 |
| Document: | PQ-3 Ferrous Debris Monitor...or.pdf |
| 최소 주문 수량: | 1 세트 ASTM D8184 철 마모 잔해 모인트 |
| 가격: | 협상 가능 |
| 포장 세부 사항: | ASTM D8184 철 마모 잔해물 모린터 합판에 포장 |
| 배달 시간: | 30일 |
| 지불 조건: | L/C,T/T,Western 통합 |
| 공급 능력: | 달 당 100개 세트 |
| 시험 표준: | ASTM D8184 | 전원 공급: | 교류 110~240V, 50/60Hz |
|---|---|---|---|
| 측정 범위: | 0 ~ 15000pq | 샘플 부피: | 5 밀리람베르트 |
| 표시: | 5.6 인치 컬러 LCD 터치 스크린 | 차원: | 402 × 266 × 186mm3 |
| 무게: | 6kg | 보증: | 1년 |
| 강조하다: | Ferrous Wear Debris Monintor,ASTM D8184,PQ Index Analyzer |
||
Introduction:
This Ferrous Wear Debris Monintoris mainly used for rapid quantitative analysis of ferromagnetic wear particles in oil and measuring the PQ index in oil samples.
PQ index is a dimensionless quantitative number with a good linear relationship with the content of ferromagnetic wear particles in the sample and the size of the wear particles. Since the PQ index is more sensitive to large size ferromagnetic abrasive particles, it is often used in combining with elemental analysis to improve the fault detection rate.

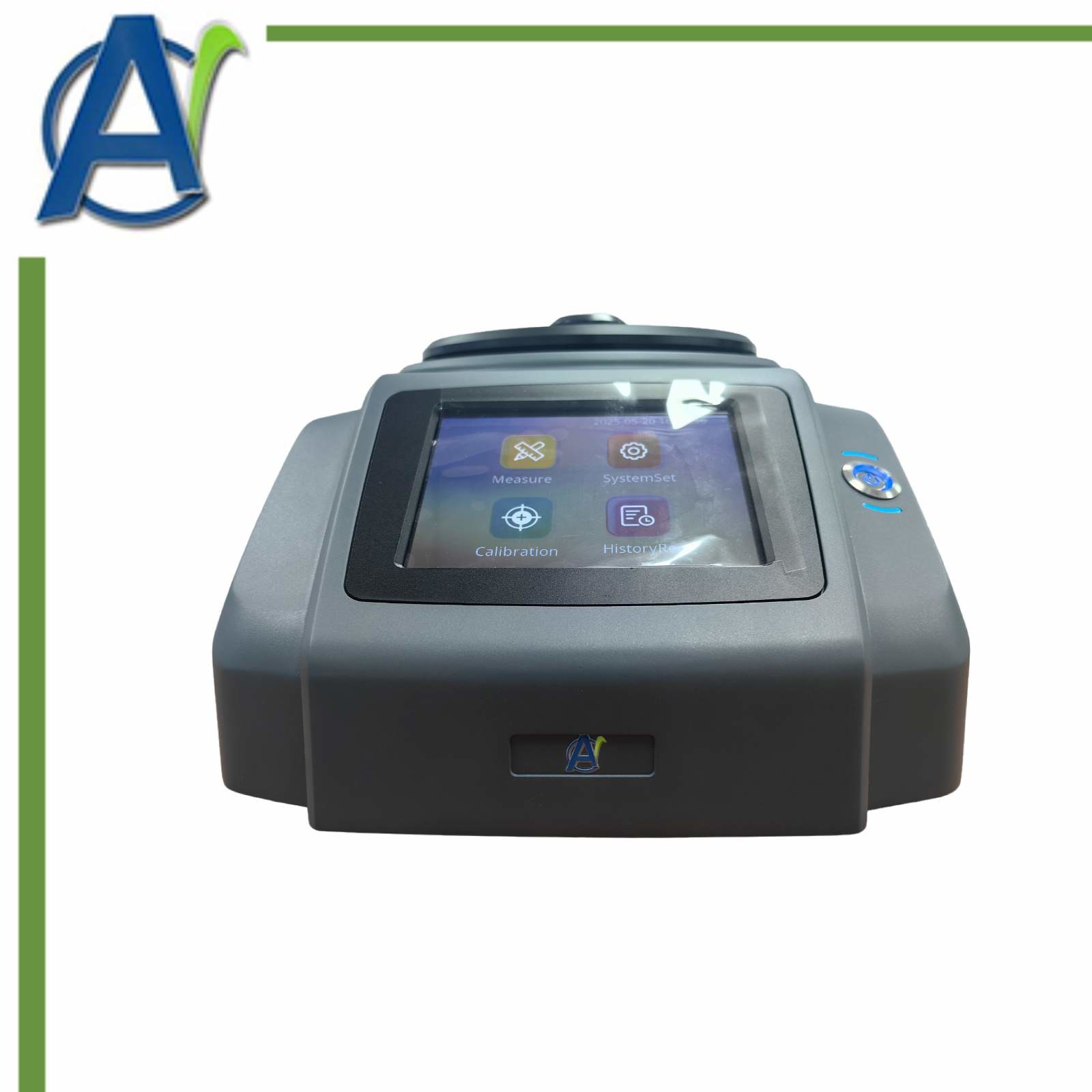

Each operation option is displayed in the display through a 5.6 inch touching screen interface. The user can select the applicable test method and name the measurement data through the detailed settings, or quickly test the oil through the default settings. The results will be displayed in real time during the measurement.
The oil samples recommended to put into the oil sample bottle to do measurment. the instrument is equipped with a 4.5ml oil sample bottle and the matching the conversion ring.
| Measure range | 0~15000PQ |
| Sample volume | 5ml |
| Capture wear particle | >5 μm (ferromagnetic wear particles) |
| Repeatability |
Measure stable oil samples (such as 750 standard samples), repeat the measurement 100 times, and 90% of the data is within ±0.5% or ±3PQ
|
| Power Supply | AC110~240V, 50/60Hz |
| Size | 402×266×186mm3 |
| Standard package |
Ferrous debris monitor+0PQ, 750PQ and 100-120PQ calibration standard+100pcs 5ml oil box+charging adapter+cables
|
| Weight | 5KG / Shipping weight:15KG |
| Reference standard | ASTM D8184 |
